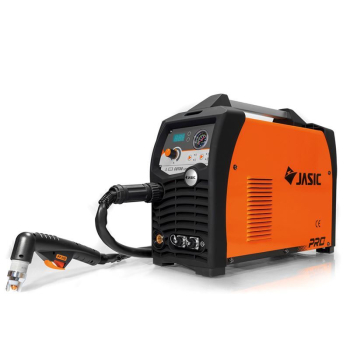

Jasic PRO Cut 61 PFC Plasma Cutter | 400V

Jasic PRO Cut 61 PFC Plasma Cutter | 400V

Stock Code: CBL-00434014
Manufacturer Part No: ZXJP-61
£1,310.40 (inc VAT) per EACH
£1,092.00 (exc VAT)
Quantity: - +

The Jasic Cut 61 is a professional grade plasma cutter that will deliver 20mm clean cuts and severance cuts of 25mm.

The JP-61 inverter comes with a PT100 plasma torch (6M), earth lead and 5 year Jasic warranty*.

This Jasic plasma model will deliver smooth and precise cutting on materials including steel, stainless, cast iron, brass, copper and aluminium.

Main Features:

IGBT plasma cutting inverter
Variable cutting control
Smooth precise cutting
Non HF ignition
LED display
CNC connection
Inbuilt air regulator
Lightweight and portable
Generator friendly**
Technical Specifications:

Input Voltage: AC 415V 50/60 Hz
Leff (A) 9.5
Input Power (kVA): 10.8
Input Current: 20 – 60A
Duty Cycle: 60A @ 40%
Clean Cut: 20mm
Severance Cut: 25mm
Power Factor: 0.9
Compressed Air 200 Ltr/Min @ 5 bar
Protection/Insulation Class IP21S/F
Dimensions (mm): 555 x 210 x 415
Weight – Power Source (kg):14.5
*5 year warranty is subject to product registration
**Generators should have a regulated output

BrandJasic
Voltage400
Cutting Capacity25mm
Max Current60A
Plasma CutterYes
