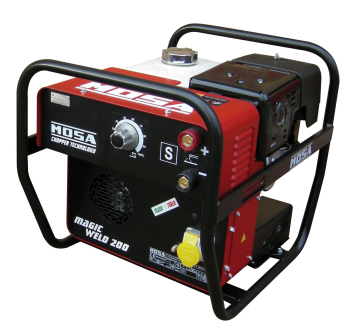

Mosa MagicWeld 200 Petrol Welder Generator 110v

Stock Code: CBL-00426750
Manufacturer Part No: 35.22251

Descriptions

FEATURES
• Arc welding source in D.C. welding
• Welds any type of electrode, including cellulosic
• High frequency control of welding current and voltage
• Single-Phase, 50Hz aux current, inverter generated- 110V
• Engine shut-down (oil alert)
• MOSA Power optimiser (patent pending)
• Auto Idle
• Protective frame
• Portable
• Meets EC directives

Technical data MAGICWELD 200
D.C. WELDING (Constant Current)
Current range, continuous 20 ÷ 200 A
Duty cycle 200 A - 60%
Open circuit voltage 70 V

A.C. GENERATION - 50Hz - Permanent magnet alternator, self-excited, brushless
Single-phase power 2.1 kVA (2.1kW) / 110V / 18.2A
Insulation class H

ENGINE - Petrol, 4-stroke, OHV, air cooled
Model Honda GX 270
* Output 6.3 kW (8.5 HP)
Cylinders / Displacement 1/ 270 cm3
Speed 3600 rpm.
Fuel consumption (welding 60%) 1.5 l/h

GENERAL SPECIFICATIONS
Tank capacity 5.3 l
Running time (welding 60%) 3.5 h
IP protection degree IP 23
* Dimensions LxWxH (mm) 630x490x540
* Dry weight 61 kg
** Acoustic power LwA (pressure LpA) 99 dB(A) (74 dB(A) @ 7 m)
