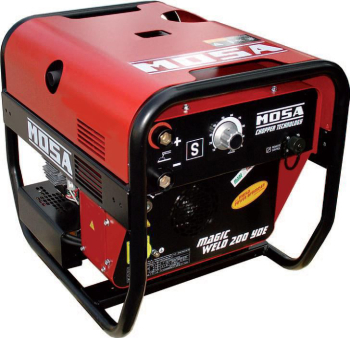

Mosa MagicWeld 200 Diesel Welder Generator 110v

Stock Code: CBL-00426751
Manufacturer Part No: 35.22272

Descriptions

FEATURES
• Arc welding source in D.C. welding
• Welds any type of electrode, including cellulosic
• High frequency control of welding current and voltage
• Single-Phase, 50Hz aux current, inverter generated - 110V
• Electric starter
• Low oil pressure automatic engine shut down
• MOSA Power optimiser (patent pending)
• Auto Idle
• Protective frame
• Meets EC directives

Technical data
D.C. WELDING (Constant Current)
Current range, continuous 20 ÷ 200 A
Duty cycle 170 A - 60%
Open circuit voltage 70 V

A.C. GENERATION - 50Hz - Permanent magnet alternator, self-excited, brushless
Single-phase power 2.1 kVA (2.1KW) / 110 V / 19.1 A
Insulation class H

ENGINE - Diesel, 4-stroke, direct injection, air cooled
Model Yanmar L70N
* Output 4.9 kW (6.7 HP)
Cylinders / Displacement 1/ 320 cm3
Speed 3600 rpm
Fuel consumption (welding 60%) 1.0 l/h

GENERAL SPECIFICATIONS
Tank capacity 3.3 l
Running time (welding 60%) 3.3 h
IP protection degree IP 23
* Dimensions LxWxH (mm) 630x490x540
* Dry weight 91 kg
** Acoustic power LwA (pressure LpA) 103 dB(A) (78 dB(A) @ 7 m)
