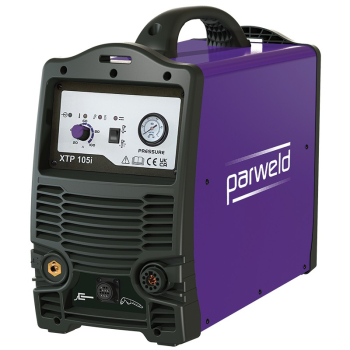

Parweld XTP 105i Inverter Plasma Cutter

VARIABLE OUTPUT

The variable output of the XTP 105 makes it ideal for cutting metals up to 30mm thick.

Infinite power control allows the output to be tuned to minimize dross on the cut edges.

The pilot arc can be set to automatically re-ignite enabling easy cutting of mesh or perforated materials.

Non HF ignition option minimizes the risk of interference with electronic systems.

GENERATOR FRIENDLY

The XTP 105 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators.

The machine is housed in a metal case with carry handles.

KEY FEATURES

400V 3 phase
100A @ 100% duty cycle
Generator friendly
Mesh cutting mode
30mm production cut
50mm severance cut
CNC interface and HF start
Supplied with XTY120 plasma torch 6m and 3m earth cable
Auto over voltage and over current protection
Includes built in air pressure regulator and pressure gauge
Optional smaller XT4000 torch for operation up to 60A
Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant

Machine Technical Specifications:

Dimensions (WxLxH) 530 x 250 x 400
Generator Size 15 KVA
Input Current (Eff) 21.6A
Input Voltage 400V 3P
KVA 13
Min Fuse Rating 32A
Output Current 20-100A
Production Cut Capacity 30mm
Severance Cut Capacity 50mm
Starting Method Short Circuit
Duty Cycle 100A @100%
Protection Class IP23S
Weight 25kg
