Parweld Aptm 200A Pulse Mig Welding Package

Product description

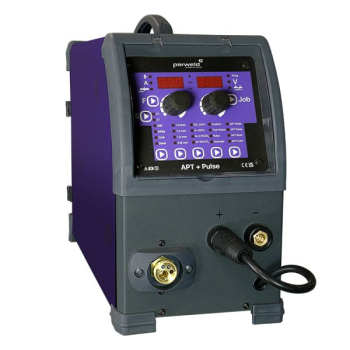

Parweld APT 220C Machine - 200A Pulse Welding Machine
Package includes: APT+ 220C Machine, XP8 200A 3M Cable MIG Torch, Argon Regulator, and Mixed Gas Flow Meter.

Advanced Power Technology + Machine with 230V mains voltage. Professional Multi-Process Pulse Welding Power Source allowing users to undertake MIG, TIG and MMA (Electrode) Welding Processes within a single machine.

Special Features: 35% Energy Saving, Digital Display, High Speed Communication, Ideal for Advanced Professional Welding, Stable Arc Characteristic during welding, Synergic Control, Encoder drivemotor and 4×4 wire feed unit, Spatter Free Weld

It provides welding without splatter by means of Synergic, Pulse.
Comes with APT+ M Root, Deep, Cold, Position, Stabi and Pipe programs.
Equipped with special programs for Steel / CrNi / Aluminum / Copper welding.
Digital display and easy-to-use front panel, allows the welder to adjust all values from the wire feeder.
Encoder drivemotor and 4×4 wire feed unit ensure stable arc formation. Especially with aluminum wires.
APT+M Pulse Inverter Technology, delivers up to 35% energy saving.
Stable arc characteristic accross a wide range of processes

Technical Specification

Pulse - Double Pulse Mode, Single Pulse
Machine Style - Compact, Portable, Professional Welding
Machine Type - Advanced Pulse MIG
Maximum Current - 200A DC
Duty Cycle - 110A @ 60% Duty Cycle, 200A @ 25% Duty Cycle, 90A @ 100% Duty Cycle
Input Voltage - 230V 1P
Amp Range - 20-200A
Open Circuit Voltage - 75VDC
Maximum Input Power (kVA) - 7.2V
Output - DC
Spool Size - 300mm (15kg)
Phase - Single Phase
Welding Programs - Aluminium Welding, Copper Welding, CrNi Welding, Steel Welding
Enclosure Protection - IP23S
Cooling - Air, Fan, Smart Efficent Fan
Warranty - 3 Year Service, 3 Year Warranty
Conforms To - IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant
