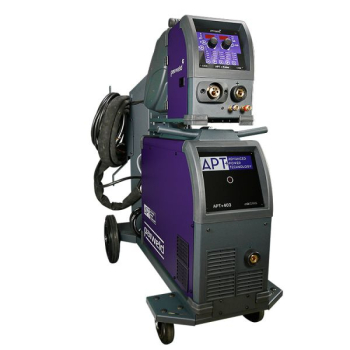

Parweld Apt+ 400A Pulse Mig Welding Machine

Parweld Apt+ 400A Pulse Mig Welding Machine

Stock Code: CBL-00450432
Manufacturer Part No: APT+M403S
£4,850.36 (inc VAT) per EACH
£4,041.97 (exc VAT)
Quantity: - +

Product description

Parweld APT+ 403S 400A Pulse Aircooled MIG Welding Machine
Product code: APT+M403S

Package includes: 3m Mains Cable, 5m Air Cooled Interconnector Lead (7 Pin), CKC403 Work Return Lead (3m), D/Roll 1.0-1.2 V Groove, Mig Torch

Advanced Power Technology + Machine with 400V mains voltage. Professional Multi-Process Pulse Welding Power Source allowing users to undertake MIG, TIG and MMA (Electrode) Welding Processes within a single machine.

It provides welding without splatter by means of Synergic, Pulse.
Comes with APT+ M Root, Deep, Cold, Position, Stabi and Pipe programs.
Equipped with special programs for Steel / CrNi / Aluminum / Copper welding.
Digital display and easy-to-use front panel, allows the welder to adjust all values from the wire feeder.
Encoder drivemotor and 4×4 wire feed unit ensure stable arc formation. Especially with aluminum wires.
APT+M Pulse Inverter Technology, delivers up to 35% energy saving.
Stable arc characteristic accross a wide range of processes
Special Features: 35% Energy Saving, Digital Display, High Speed Communication, Ideal for Advanced Professional Welding, Stable Arc Characteristic during welding, Synergic Control, Encoder drivemotor and 4×4 wire feed unit, Spatter Free Weld

Technical Specification

Dimensions - 530 × 1039 × 1346 mm
Pulse - Single Pulse
Machine Style - Portable, Professional Welding, Separate
Machine Type - Advanced Pulse MIG
Maximum Current - 400A DC
Duty Cycle - 300A @ 100% Duty Cycle, 400A @ 60% Duty Cycle
Input Voltage - 400V 3P
Amp Range - 20-400A
Open Circuit Voltage - 75VDC
Maximum Input Power (kVA) - 17.8V
Output - DC
Spool Size - 300mm (15kg)
Phase - Three Phase
Welding Programs - Aluminium Welding, Copper Welding, CrNi Welding, Steel Welding
Enclosure Protection - IP23S
Cooling - Air, Fan, Smart Efficent Fan
Trolley - TR011 Trolley
Warranty - 3 Year Service, 3 Year Warranty
Conforms To - IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant

BrandParweld
Voltage400V
Max Current400A
MIGYes
PULSEYes
