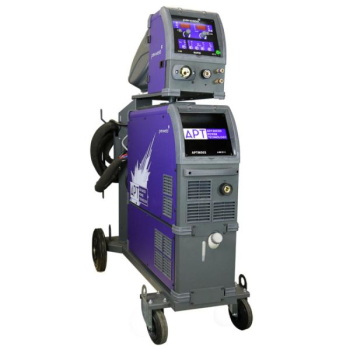

Parweld Apt+ 500A Pulse Watercooled Mig Welding Machine

Parweld Apt+ 500A Pulse Watercooled Mig Welding Machine

Stock Code: CBL-00450435
Manufacturer Part No: APT+M503SW
£6,823.62 (inc VAT) per EACH
£5,686.35 (exc VAT)
Quantity: - +

Product description

Parweld APT+ 503S 500A Pulse Watercooled MIG Welding Machine
Product code: APTM+503SW

Package includes: 3m Mains Cable, CKC403 Work Return Lead (3m), 5m Water Cooled Interconnector Lead (7 Pin), D/Roll 1.0-1.2 V Groove, Mig Torch.

Advanced Power Technology + Machine with 400V mains voltage. Professional Multi-Process Pulse Welding Power Source allowing users to undertake MIG, TIG and MMA (Electrode) Welding Processes within a single machine.

It provides welding without splatter by means of Synergic, Pulse.
Comes with APT+ M Root, Deep, Cold, Position, Stabi and Pipe programs.
Equipped with special programs for Steel / CrNi / Aluminum / Copper welding.
Digital display and easy-to-use front panel, allows the welder to adjust all values from the wire feeder.
Encoder drivemotor and 4×4 wire feed unit ensure stable arc formation. Especially with aluminum wires.
APT+M Pulse Inverter Technology, delivers up to 35% energy saving.
Stable arc characteristic accross a wide range of processes
Special Features: 35% Energy Saving, Digital Display, High Speed Communication, Ideal for Advanced Professional Welding, Stable Arc Characteristic during welding, Synergic Control, Encoder drivemotor and 4×4 wire feed unit, Spatter Free Weld

Technical Specification

Dimensions - 1270 mm
Pulse - Single Pulse
Machine Style - Portable, Professional Welding, Separate
Machine Type - Advanced Pulse MIG
Maximum Current - 500A DC
Duty Cycle - 400A @ 100% Duty Cycle, 500A @ 60% Duty Cycle
Input Voltage - 400V 3P
Amp Range - 20-500A
Open Circuit Voltage - 75VDC
Maximum Input Power (kVA) - 24.8V
Output - DC
Spool Size - 300mm (15kg)
Phase - Three Phase
Welding Programs - Aluminium Welding, Copper Welding, CrNi Welding, Steel Welding
Enclosure Protection - IP23S
Cooling - Water (with Unit Attachment)
Warranty - 3 Year Service, 3 Year Warranty
Conforms To - IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant

BrandParweld
Voltage400V
Max Current500A
MIGYes
PULSEYes
