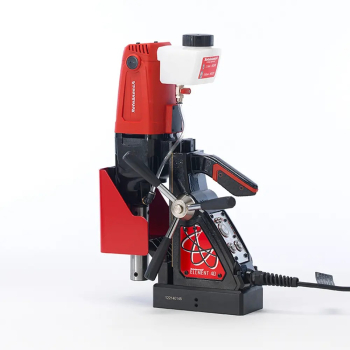

ROTABROACH ELEMENT 40 230V MAG DRILL

Stock Code: CBL-00456476
Manufacturer Part No: ELEMENT 40/3

Descriptions

Element 40

Powerful 1200w motor with a two-speed mechanical gearbox.
13kg in total weight.
Suitable for drilling up to 40mm diameter by 50mm depth.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
Internal cabling reduces the risk of damage and downtime for your magdrill.
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
Small in size (514mm), this magnetic drill performs in difficult environments.
40mm max cutter diameter.
Dual motor protection system to prolong the machine’s life and prevent unwanted wear.

SPECIFICATION
Model Number
Element 40/1 / Element 40/3

Motor Specification
110V 1200W / 230V 1200W

No load RPM
Low Gear: 300 RPM/High Gear: 600 RPM

Max Cutting Capacity
ø40 x 50mm deep

Drill Chuck Capacity
ø13mm

Overall Dimension
Height: 510mm / Width: 185mm with Capstan / Length: 285mm with Guard

Machine Weight
13.65kg

Magnetic Adhesion
10,000N

Magnet Size
180mm x 90mm

Safety Features
Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
