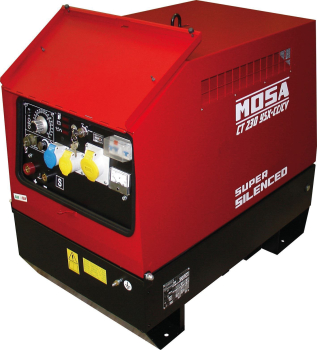

Mosa CS230 YSX-CC/CV ECO Diesel Welder Generator 110 230V

Stock Code: CBL-00426758
Manufacturer Part No: 35.37298CVE

Descriptions

FEATURES
• Arc welding source in D.C. welding
• High frequency control of welding current and voltage
• Engine cowling side, can be completely opened, which
facilitates all maintenance operations
• The recessed control panel is lockable and houses the
sockets and machine
• A.C. generator, single-phase and three-phase
• Aux power also available while welding
• Power optimiser (engine power optimization system)
• VRD - Voltage reduction device
• Large fuel tank (23 l)
• Meets EC directives for noise and safety

SPECIFICATION 4 STROKE, DIRECT INJECTION, NATURAL ASPIRATED
Model YANMAR L 100 V
* Stand-By net power 6.3 kWm (8.5 hp)
* PRP net power 5.7 kWm (7.7 hp )
* COP net power /
Cylinders / Displacement 1 / 435 cm³ (0.27 lt.)
Bore / Stroke 86 / 75 (mm)
Compression ratio 20 : 1
BMEP (Brake Mean Effective
Pressure : LTP - PRP) /
Speed governor type Mechanical
FUEL CONSUMPTION
110 % (Stand-by power) 1.9 lt./h
100 % to PRP 1.7 lt./h
75 % to PRP 1.2 lt./h
50 % to PRP 0.8 lt./h
COOLING SYSTEM
Total system cap. - only engine /
Fan air flow /
LUBRICATION SYSTEM
Total oil system capacity /
Oil capacity in sump 1.6 lt.
Oil consumption at full load /
EXHAUST SYSTEM
Maximum exhaust gas flow /
Max. exhaust gas temp. /
Maximum back pressure 4.3 kPa (0.043 bar 440 mmH2O)
External diameter exhaust pipe /
ELECTRICAL SYSTEM /
Starter motor power 0.8 kW
Battery charging alternator cap. 15 A
Cold start - 10°C
With cold start aid /
AIR FILTER Dry
Combustion air flow /
HEAT REJECTED AT FULL LOAD
To exhaust system /
To water and oil /
Radiated to room /
To charge cooler /
